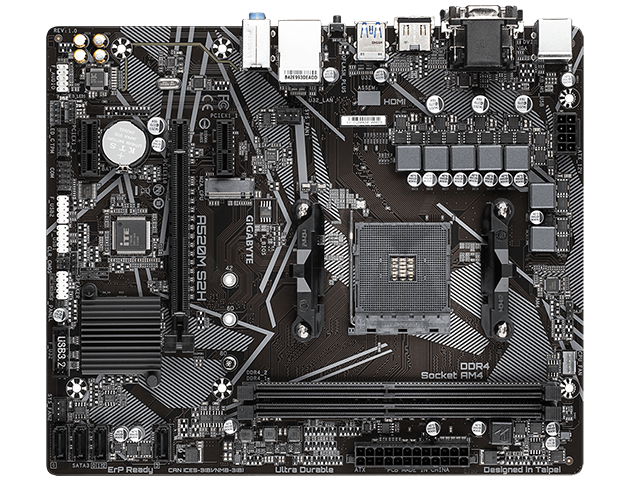

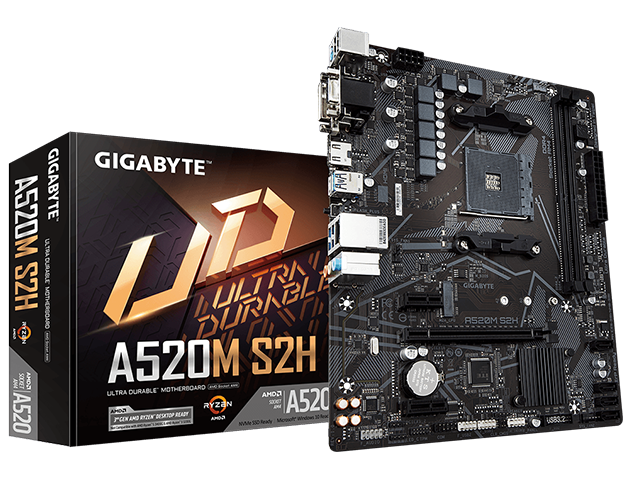

Gigabyte A520M S2H
$88.00
AMD AM4 Socket CPU
AMD A520 Chipset
Windows® 10 64-bit
9.6 in x 8.1 in (24.4 cm x 20.5 cm)
m-ATX
3Year
$88
1 in stock
Additional information
| CPU Support | Supports AMD RyzenTM 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with RadeonTM Graphics processors |
|---|---|
| CPU Socket | AMD AM4 |
| Chipset | AMD A520 Chipset |
| Graphics Interface | 1 x PCIe 3.0 x16 Slots (x16 mode) |

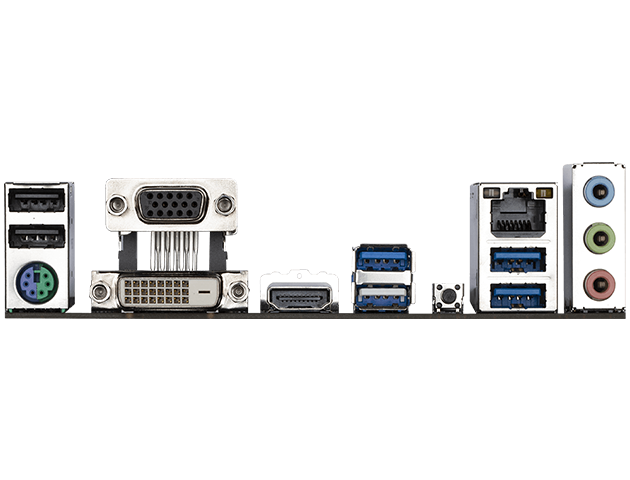

| Display Interface | DVI-D, HDMI, D-Sub |
| Memory Support | 2 DIMMs, Dual Channel DDR4 up to 4266MHz (64GB Max) |
| Expansion Slots | 2 x PCIe 3.0 x 1 slots |
| Storage | 1 x M.2 Socket 3 (both SATA & PCIe mode), 4 x SATA 6Gb/s gray |
| SATA RAID | RAID 0, 1, 10 for SATA Storage Devices |
| USB Ports | 4 x USB 3.2 (Gen1), 2 x USB 3.2 (Gen1), 6 x USB 2.0/1.1 ports |
| LAN | Realtek® GbE LAN chip (1000 Mbit/100 Mbit) |
| Wireless + Bluetooth | N/A |
| Audio | 8-Channel (7.1) HD Audio with Audio Boost |
| Operating System | Support for Windows® 10 64-bit |
| Dimensions | 9.6 in x 8.1 in (24.4 cm x 20.5 cm) |
| Form Factor | m-ATX |
